Case Studies & Lab Reports
Field installations and treatability work.
Selected projects across electroplating, hard chrome, radiator repair, oil & gas, food processing, and site water treatment. Independent lab analysis throughout — Caro Labs (Kelowna), Eco-Tech Laboratories (Kamloops), and International Metallurgical & Environmental (IME).
All reports.
Chromate Plating · April 2002
PPI Chromate: dark blue waste to compliance
KB-1 SME treatment on chromate plating waste with high Cr⁶⁺ (590 mg/L) and zinc loading. Full treatment procedure with photographic documentation.

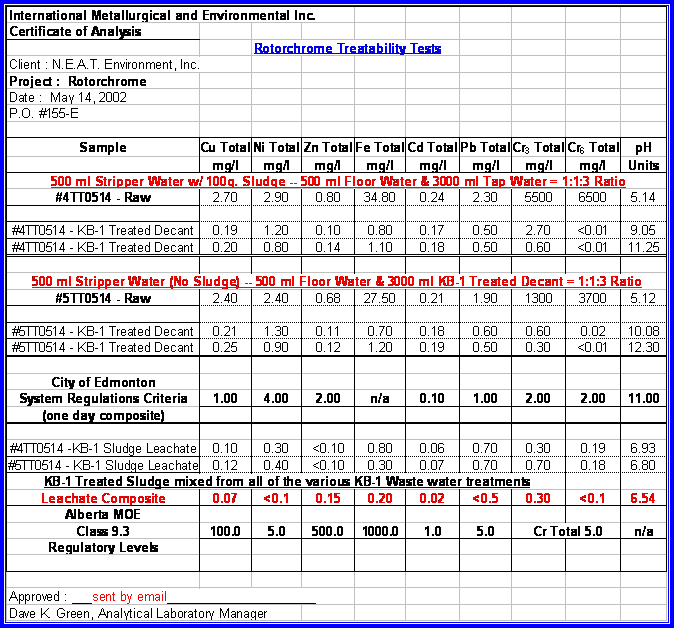

Hard Chrome · June 2002
Rotorchrome stripper tank: Cr⁶⁺ 6,500 to <0.01 mg/L
Dual treatability test (#4TT0514 and #5TT0514) on stripper tank and floor waste water. Two-step Cr⁶⁺ reduction followed by KB-1 encapsulation. Treated sludge leachate passes all regulatory limits.

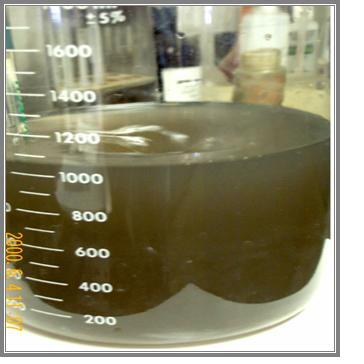

Radiator Repair · August 2002
ORL waste water: mixed metals at pH 5.17
Bench treatability on waste wash and process water with copper, lead, zinc, aluminum, and phosphate loading. Documented start-to-finish treatment procedure.
Nickel Plating · All Brite
Nickel rinse: PW E-Cell, no pH adjustment
Treatability test on nickel rinse water to develop a recycling treatment procedure. Successfully treated without pH adjustment, simplifying equipment requirements.
Heavy Oil · Northern Alberta
SAGD process water: hydrocarbons, Ba, Sr
Treatability study for a Calgary-based heavy oil producer. Combined boiler blow-down and SAGD process water; targets included extractable petroleum hydrocarbons and dissolved barium and strontium.
Site Water · Holding Pond
Company pond water: recycling test
PW E-Cell treatment on holding pond water with red coloration. Treated without pH adjustment; dark green to black floc precipitates rapidly. Treated water suitable for recycle.
Food Processing · January 2006
Food plant effluent: 100% bacteria reduction
Test on total plant effluent, hot wash water, ambient wash water, and cold water. APC reduced from 118 million cfu/g to 280; coliform from 65 million to 10; salmonella eliminated.

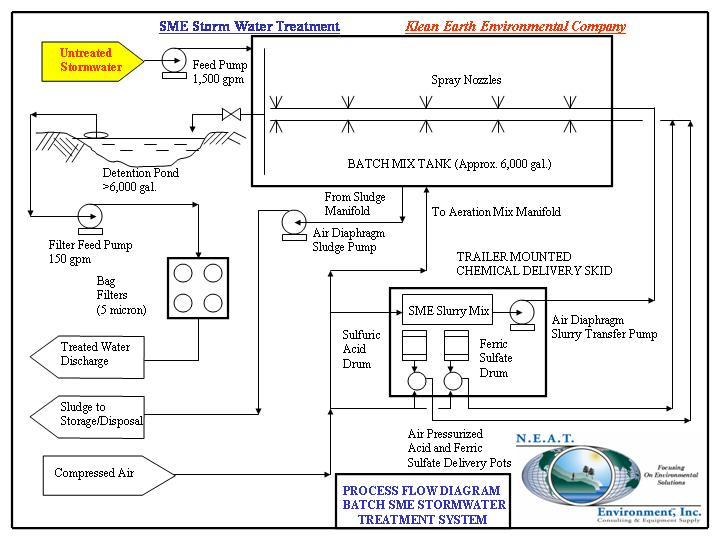

Stormwater · City of Redmond, WA
Batch SME stormwater system
Full-scale batch system developed with Aero Construction Company. Reviewed by Washington state and City of Redmond officials including water quality monitoring and bioassay testing. 100–150 gpm effective rate.

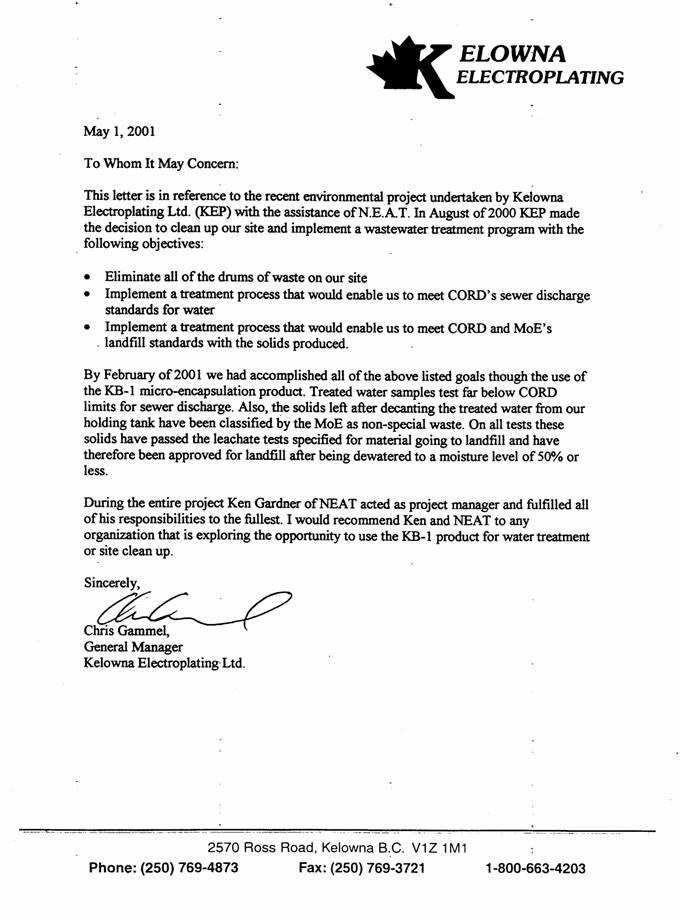

Press · Kelowna Electroplating
KEP customer letter
Customer reference from Kelowna Electroplating regarding treatment results and equipment operation.
Each report includes raw vs. treated lab data, treatment procedure, and full photographic documentation. Contact us if you need the original lab certificates or a treatability study on your own waste stream.
Treatability Study
Want one of these for your shop?
Send us a sample and a description of your operation. We run bench-scale treatability work in our shop and arrange independent lab analysis. Most studies take one to two weeks.
